PLUTO: Advanced Media Matrix

PLUTO processor supports 64-bit floating point operation, 48/96kHz sampling rate, and ultra-low power consumption of less than 2 watts, which makes PLUT0 processor more powerful, stable and efficient than. It can import FIR files to ensure the true reproduction of sound quality, with more abundant DSP resources, faster computing speed, lower latency. The hardware adopts the international common advanced line design, the number of input/output channels can be selected 12 into 8 out, 16 into 16 out and 18 into 10 out. Users can choose AEC function and 64×64 Dante according to their needs, which can provide unlimited creativity for integrators, designers and end-users.

XILICA with years of independent research and development of DSP algorithm technology and a deep understanding of customer needs, this PLUTO provides a powerful algorithm technology and software control support. PLUTO series of applications Xilica Designer design control software, to provide a full range of solutions to configure, operate and maintain the system. Ensure that the audio system is in a highly efficient and stable working condition, control software interface is intuitive and simple, faster operation settings and better compatibility.
Runs on Windows, MACOS operating systems.

  • 16 analog audio inputs, support 48V phantom power supply / or select line inputs
  • 16 analog audio outputs
  • RJ45 interface for connection to the LAN for centralized management, software design system for the full open architecture, free drag and drop DSP module, customizable control interface, Android TP-8 touch screen, XWP wall panel, Apple IPAD interface, third-party devices can be controlled, with XILICADesigner software through the IPAD platform can also support other TCP/IP protocols Control of other devices supporting TCP/IP protocol through IPAD platform
  • 2.7G FLOPS with 32/40/64-bit floating-point computing power, and ultra-low power consumption of less than 2 watts.
  • Standard 1U Rack
  • Connector: Euroblock 3.5mm
  • Optional 96kHz sampling rate
  • Optional digital audio processing module
    | Mixers: Standard Mixing Console, Matrix Selector Mixer, Stereo Mixer, Center-Left Stereo Mixer, Auto Threshold Mixer.
    AGC Auto Gain Sharing Mixer (Bottom Noise Compensation), Priority Mixer, Adder, Dynamic Equalization, DYNAMIC EQ, DYNAMIC EQ, DYNAMIC EQUALIZATION, DYNAMIC EQ, DYNAMIC EQ, DYNAMIC EQ
    FIR, CUSTOM FIR et XILICA NETWORKED AUDIO & CONTROL SOLUTIONS
    | Equalizers: GEQ Graphic Equalizer, PEQ Parametric Equalizer, AFC Auto Feedback Suppressor
    | Filters: High-pass filters, low-pass filters, high-frequency band-pass filters, low-frequency band-pass filters, phase-correction filters
    | Crossovers: 2-way, 3-way and 4-way
    | Dynamic Processor: Noise Gate, Auto Level Controller, Compressor, Limiter, Expander, Dodger (Auto Background Music Attenuation)
    | Router Distributor: 1×1 ~ 64×64
    | Delayer:0 ~ 2s
    | Controllers: Volume Controller, 70 Mode Recalls, Logic Control Module
    | Level Meter: Signal Level Meter, Peak Level, RMS
    | Signal Generators: Sine Wave Generator, Pink Noise Generator, White Noise Generator
    | System Diagnostic Module: Transfer connection network diagnostic function, password setting, software language selection function (Simplified Chinese/Traditional Chinese/English)
  • Multiple PLUTO series digital audio media matrix can be connected to the LAN POE24 switch through the RJ45 network port, which can form a large control system.
    The TP-8 and XWP panels can be powered by POE and control the audio media matrix.
  • XILICA Designer software can run on Windows 2000/XP/7/8/10 platform, also can run on Apple OS platform, and TP-8 installation software XTouch can run on Android platform, XILICA Designer can run on iOS platform.

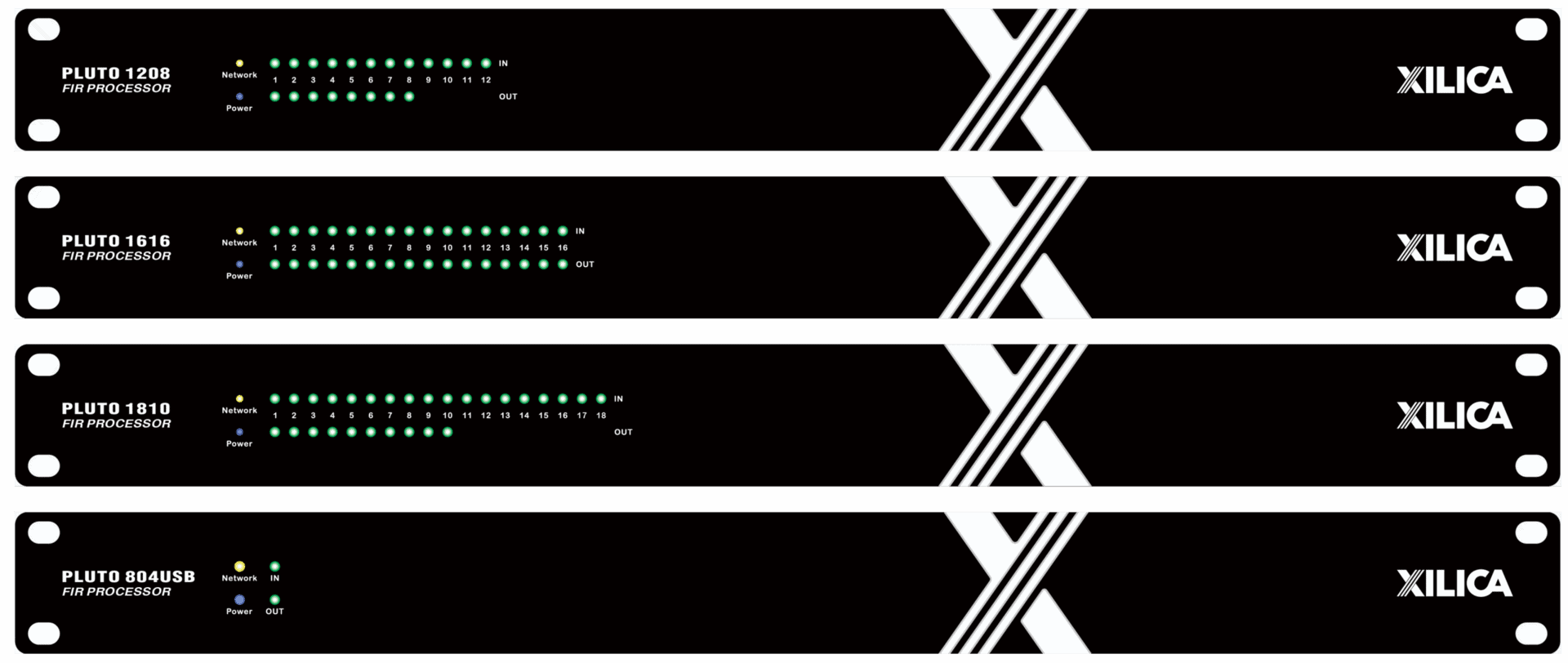

Base model PLUTO 1208
PLUTO 1616
PLUTO 1810
PLUTO 804USB
processing unit 64-bit Floating Point
DSP chip ADI SC587 Dual Core Processor
sampling rate 48/96kHz
Input and output channels 12 in 8 out, 16 in 16 out and 18 in 10 out
AEC channel 100ms x 16; 250ms x 8
transmission delay 4ms / 2ms (for 48/96 kHz)
power supply 90-240 VAC (50-60Hz)
sizes 483×44.4×306.5mm
rackmount 1RU, with vent between units
weights 3.9kg
